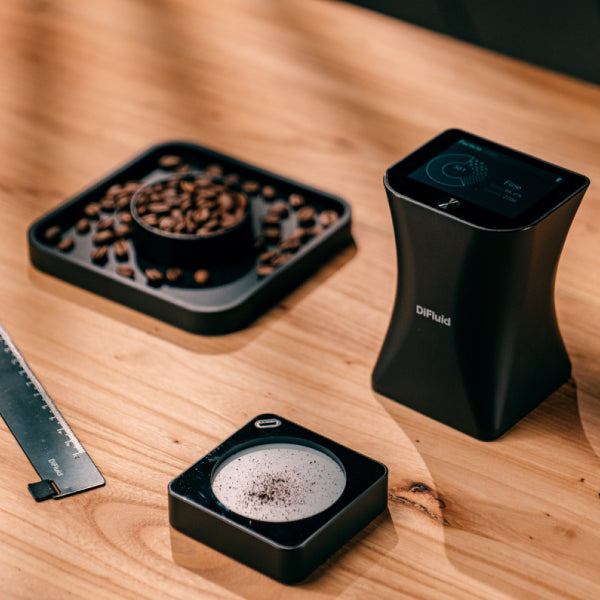

The DiFluid Omni Coffee Roast and Particle Analyser is a benchtop instrument that measures both roast colour and grind particle size in the same device, instead of needing a separate tool for each. It scans a sample in seconds and returns Agtron colour scores alongside a full particle size breakdown, D10, D50, D90, mode and standard deviation, without any manual averaging.

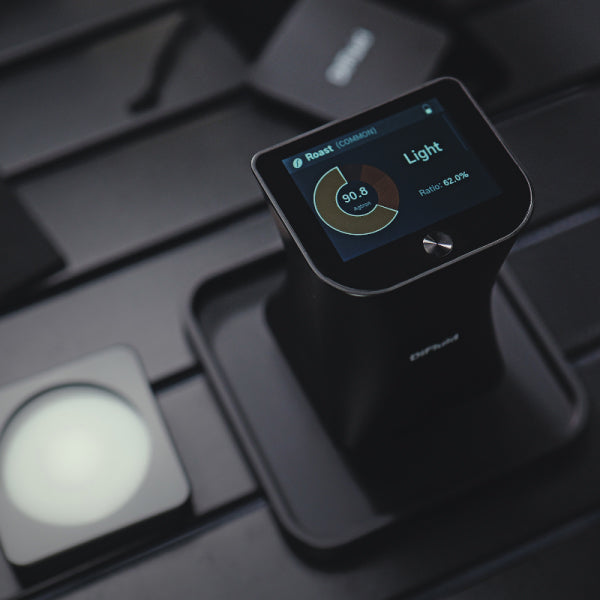

On the colour side, it reads Agtron scores for both whole beans and ground coffee, then calculates the deltas between them, uniformity, colour change and peak shift, to show how a roast actually developed rather than just where it landed. On the particle side, it measures grind distribution from 100 to 2500 microns, so you can see how even a grind actually is rather than judging by eye.

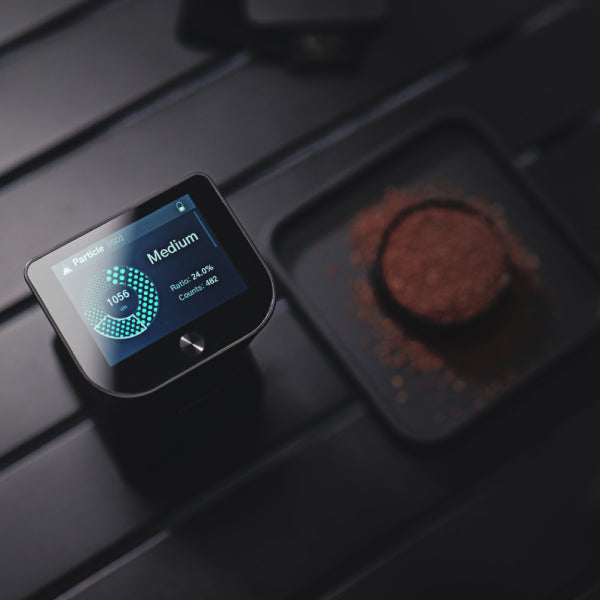

Everything shows up on a 2.8-inch touchscreen as a real-time graph and results sync to CoffeeOS over Bluetooth for logging and comparison across tests. There's no preheating step and a single test takes as little as four seconds, so checking a roast or a grind doesn't mean building extra time into an already busy workflow. At 290g, the main unit is light enough to move between a roaster, a grinder and a cupping table without much thought.
DiFluid Omni Coffee Roast and Particle Analyser Features
Dual-Purpose Analysis - Measures roast colour and grind particle size in the same device, instead of needing a separate tool for each.
Automatic Particle Metrics - Calculates D10, D50, D90, mode and standard deviation from a single scan, without manual averaging.

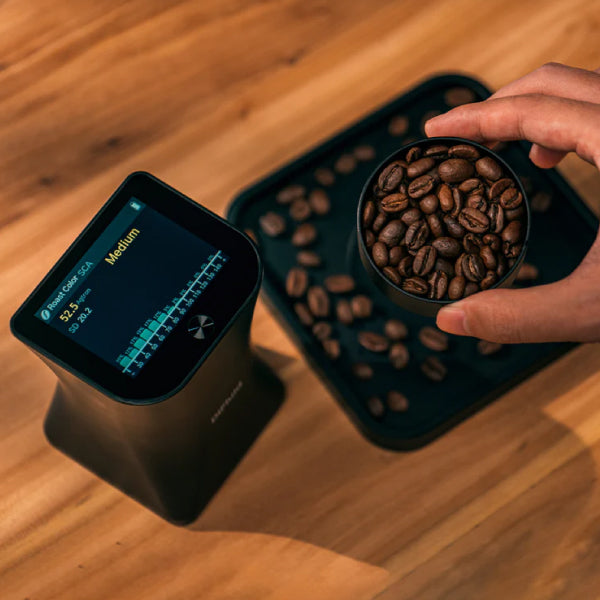

Whole Bean & Ground Agtron Scoring - Reads colour for both whole beans and grounds, then calculates the delta between them to show how a roast developed.
Four-Second Test Speed - No preheating required, with a single test finished in as little as four seconds.
Real-Time Touchscreen Graphs - A 2.8-inch touchscreen displays distribution data as it's captured, not just a final number.
CoffeeOS Bluetooth Sync - Logs results automatically for comparison across tests, roasts, and grinders.

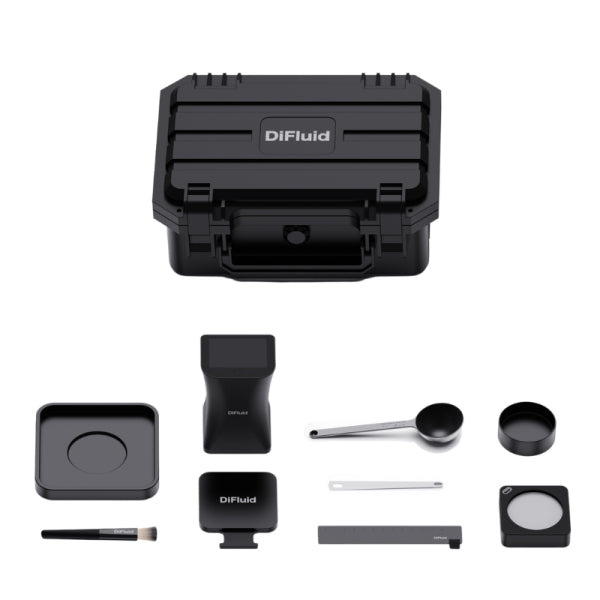

This Product Includes
- 1 x DiFluid Omni Coffee Roast and Particle Analyser
- 1 x Sample Prep Base
- 1 x Particle Base
- 1 x Bean/Grounds Dish
- 1 x Roast Calibration Plate
- 1 x Scraper
- 1 x Bean Scoop
- 1 x Brush
- 1 x USB-C Charging Cable
- 1 x Carrying Box
Specifications
| Roast Colour Range | 0 - 150 Agtron |
| Roast Colour Precision | ±0.1 Agtron |
| Roast Colour Resolution | 0.1 Agtron |
| Particle Size Range | 100 - 2500µm |
| Particle Size Resolution | 1µm |
| Screen | 2.8" IPS Touchscreen |
| Battery | 2500mAh |
| Charging | USB-C, 5V/1A |
| Dimensions | (H) 109mm x (W) 79mm x (D) 72mm |
| Weight | 290g |
| Warranty | 12 Months* |
